Brief:

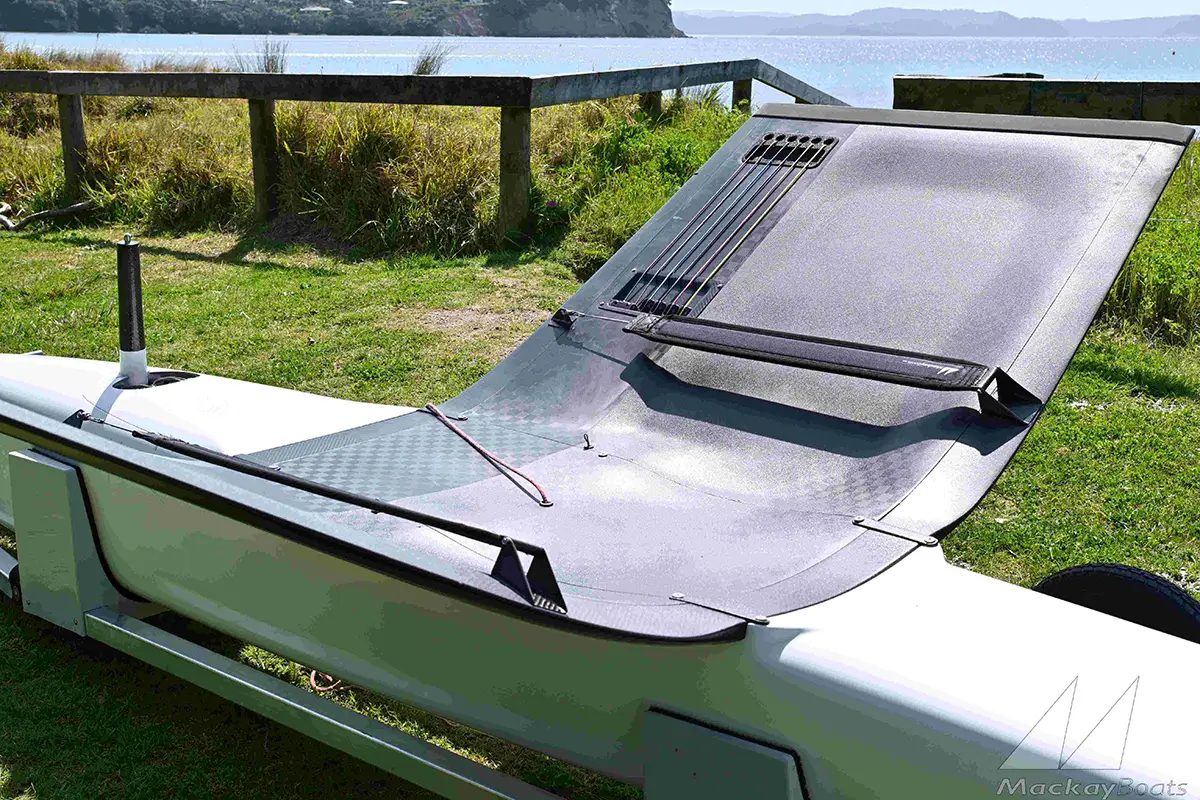

Design and build a composite Moth wing that supports the structural loads of the sailor and boat, while optimizing the wing’s “surface area” for aerodynamics and sailor maneuverability. Integrate internal cavities into the wings for control line systems (used by sailors to make adjustments). Keep weight to minimum.
Capabilities Used:
-
In-house design team: Composite designer and composite engineer
-
In-house CNC machining: Seven foam components produced with precision up to 0.1 mm
-
Material: Pre-preg carbon fibre with additional reinforcement patches
-
Production team: Fairing surfaces with no tolerance for deviation
-
Assembly team: Interconnecting intricate parts
